Test Report

Testing Scope

The scope of testing is to verify fitment to the specification from the perspective of

• Functionality

• Deployability

• Configurability

• Customizability

Verification is performed not only from the end user perspective but also from the System Integrator (SI) point of view. Hence, the Configurability and Extensibility of the software is also assessed. This ensures the readiness of software for use in multiple countries.

The Inji testing scope revolves around the following flows:

• Biometric unlock

• Passcodes unlock

• VC download via MOSIP

• VC download via e-signet

• VC downloads via Sunbird

• Pinning a VC

• Normal VC sharing with VID

• Deleting VC

• Face Auth on the Resident's phone with VID

• Multi-language support

• Credential registry

• Backup and restore

• Wallet binding

• Deep link navigation

• OpenID4VP

• QR code Login

• Key Management

• Credential Offer

• SD JWT VC download

• Logout

Test Approach

A persona-based approach has been adopted to perform the IV&V by simulating test scenarios that resemble real-time implementation.

A Persona is a fictional character/user profile created to represent a user type that might use a product/or a service in a similar way. Persona-based testing is a software testing technique that puts software testers in the customer's shoes, assesses their needs from the software and thereby determines use cases/scenarios that the customers will execute. The persona's needs may be addressed through any of the following.

• Functionality

• Deployability

• Configurability

• Customizability

The verification methods may differ based on how the need was addressed.

Verified configuration

Verification is performed on various configurations as mentioned below

• Default configuration - with 1 Lang

Feature Health

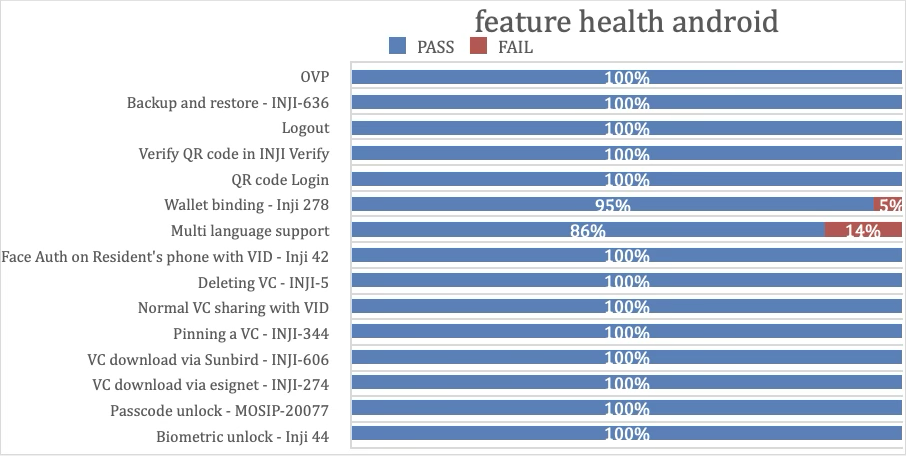

• On Android Device:

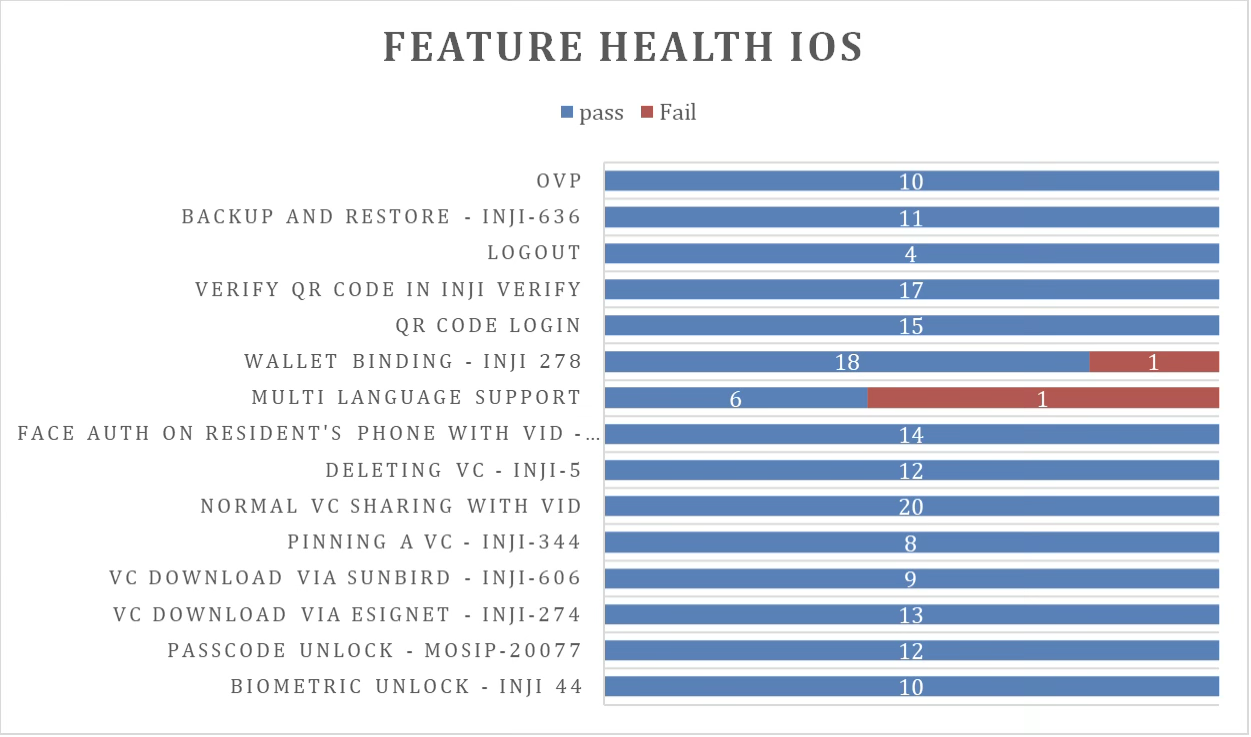

• On iOS Device:

Test execution statistics

Functional test results by modules

Below are the test metrics for performing functional testing using mock MDS and mock ABIS. The process followed was black box testing, which was based on the specifications of the software component under test. The functional test was performed in combination with individual module testing as well as integration testing. Test data were prepared in line with the user stories. Expected results were monitored by examining the user interface. The coverage includes GUI testing, System testing, and end-to-end flows across multiple languages and configurations. The testing cycle included the simulation of multiple identity schemas and respective UI schema configurations.

Total	Passed	Failed	Skipped (N/A)	Pass Rate
3900	3493	407	0	89%

Test Rate: 100% execution coverage achieved.

Here is the detailed breakdown of metrics for each module:

Platform	Total	Passed	Failed	Skipped (N/A)
Android Device	2038	1839	199	0
iOS Device	1862	1654	208	0

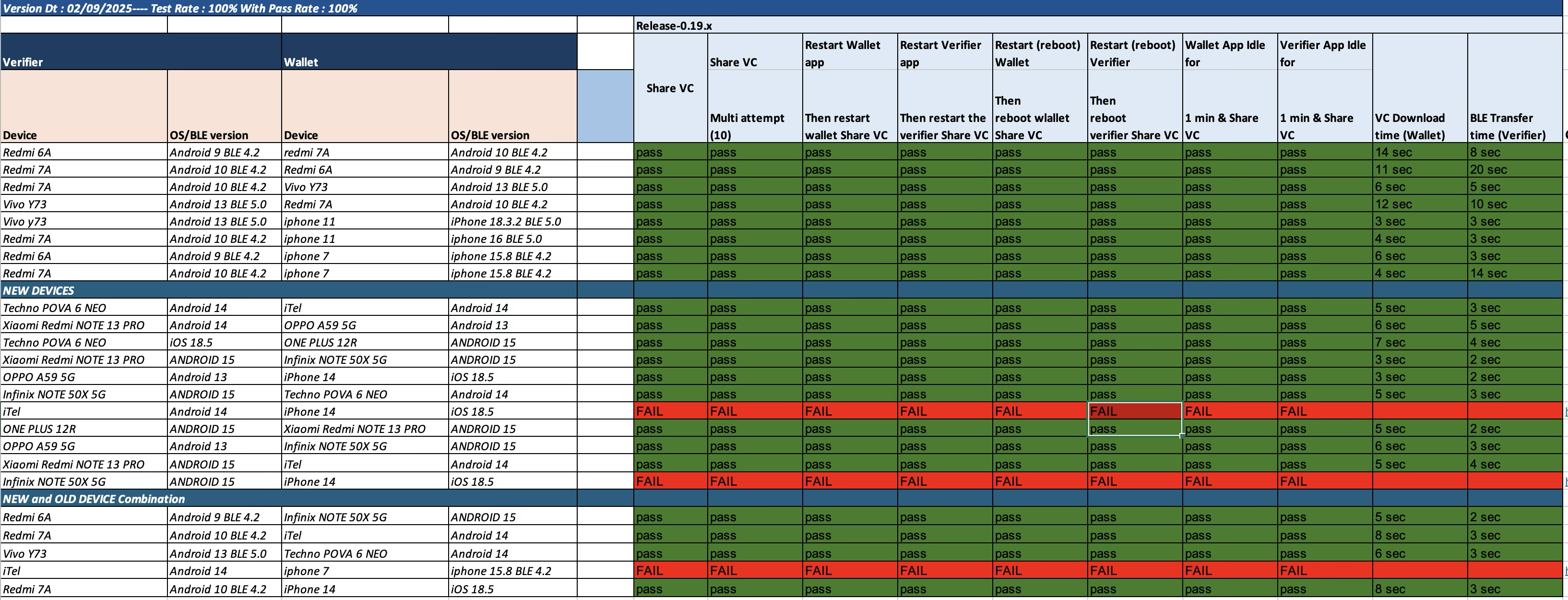

Testing with various device combinations

Below are the test metrics by performing VC Sharing functionality on various device combinations:

Total	Passed	Failed	Skipped	Pass Rate
240	210	30	0	87.5%

Test Rate: 100% execution coverage achieved.

Device and Component Details:

Tested with Inji Components (qa-inji1)

• mosipqa/inji-verify-service:0.14.x

• mosipqa/inji-verify-ui:0.14.x

• mosipqa/inji-certify-with-plugins:0.12.x

• mosipqa/apitest-mimoto:0.18.x

• mosipqa/mimoto:0.19.x

• mosipqa/inji-web:0.14.x

Tested with Components (Released env)

• mosipid/mimoto:0.18.1

• mosipid/apitest-mimoto:0.18.1

• mosipid/inji-verify-service:0.13.1

• mosipid/inji-verify-ui:0.13.1

• mosipid/apitest-inji-certify:0.11.0

• mosipid/inji-web:0.13.1

• mosipid/esignet-with-plugins:1.6.1

• mosipid/authentication-service:1.2.1.0

• mosipid/authentication-internal-service:1.2.1.0

• mosipid/authentication-otp-service:1.2.1.0

• mosipid/kernel-notification-service:1.2.0.1

• mosipid/registration-processor-stage-group-1:1.2.1.1

Devices Used for Testing

• Vivo Y73 with Android 13, BLE 5.0

• Samsung Galaxy A03 Core with Android 11, BLE 4.2

• iPhone 11 with iOS 18.3.2, BLE 5.0

• iPhone 7 with iOS 15.8, BLE 4.2

• Redmi 7A with Android 10, BLE 4.2

• Redmi 6A with Android 9, BLE 4.2

• Techno POVA 6 NEO – Android 14

• iTel – Android 14

• iPhone 14 – iOS 18.5

• OPPO A59 5G – Android 15

• ONE PLUS 12R – Android 15

• Xiaomi RedMi NOTE 13 PRO – Android 15

• Infinix NOTE 50X 5G – Android 15

• iPhone 13 – iOS 18.5

Detailed Test Metrics

Below are the detailed test metrics from performing manual testing. The project metrics are derived from Defect density, Test coverage, Test execution coverage, test tracking and efficiency.

The various metrics that assist in test tracking and efficiency are as follows:

• Passed Test Cases Coverage: It measures the percentage of passed test cases. (Number of tests passed / Total number of tests executed) x 100

• Failed Test Case Coverage: It measures the percentage of all failed test cases. (Number of failed tests / Total number of test cases executed) x 100

Github link for the detailed report is here
