Test Report
Scope
The scope of testing is to verify fitment to the specification from the perspective of:
Functionality
Deployability
Configurability
Customizability
Verification is performed not only from the end-user perspective but also from the System Integrator (SI) point of view. Hence, the configurability and extensibility of the software is also assessed. This ensures readiness of software for use in multiple countries. Since MOSIP is an “API First” product platform, verification scope required comprehensive automation testing for all the MOSIP APIs. An automation Test Rig is created for the same.
The Inji Wallet testing scope revolves around the following flows:
Biometric unlock
Passcode unlock
VC download via MOSIP
VC download via eSignet
Retrieving UIN/VID via AID
Pinning a VC
Normal VC sharing with VID
Deleting VC
Face Auth on Resident's phone with VID
Multi language support
Wallet binding
QR code Login
Logout
Test approach
Persona based approach has been adopted to perform the IV&V(Independent Verification and Validation) by simulating the test scenarios that resemble a real-time implementation.
A Persona is a fictional character/ user profile created to represent a user type that might use a product/ or a service in a similar way. Persona based testing is a software testing technique that puts software testers in the customer's shoes, assesses their needs from the software and thereby determines use cases/ scenarios that the customers will execute. The persona needs may be addressed through any of the following:
Functionality
Deployability
Configurability
Customizability
The verification methods may differ based on how the need was addressed.
For regression check, MOSIP Test Rig, an automation testing suite is indigenously designed and developed for supporting persona based testing. MOSIP Test Rig covers the end-to-end test execution and reporting. The end-to-end functional test scenarios are written starting from pre-registration, to creation of packet in registration center, processing the packet through the registration processor, generating UIN and authenticating identity using IDA through various permutation and combinations of cases being covered. MOSIP Test Rig will be an open source artifact which can also be enhanced and used by countries to validate the SI deliveries before going live. Persona classes include both negative and positive personas. Negative persona classes include users like Bribed Registration Office, Malicious Insider etc. The needs of positive persona classes must be met, whereas the needs of negative persona classes must be effectively restricted by the software.
Verified configuration
Verification is performed on various configurations as mentioned below:
Default configuration - with 3 languages
Virtual countries
1 Lang configuration
2 Lang configuration
3 Lang configuration
Feature health
Test execution statistics
Functional test results
Below are the test metrics for Inji Wallet by performing functional testing using mockMDS and mockABIS. The process followed was black box testing which based its test cases on the specifications of the software component under test. Functional test was performed in combination of individual module testing as well as integration testing. Test data were prepared inline with the user stories. Expected results were monitored by examining the user interface. The coverage includes GUI testing, System testing, End-To-End flows across multiple languages and configurations. The testing cycle included simulation of multiple identity schema and respective UI schema configurations.
Test Rate: 96% with Pass Rate: 86%
Here is the detailed breakdown of metrics:

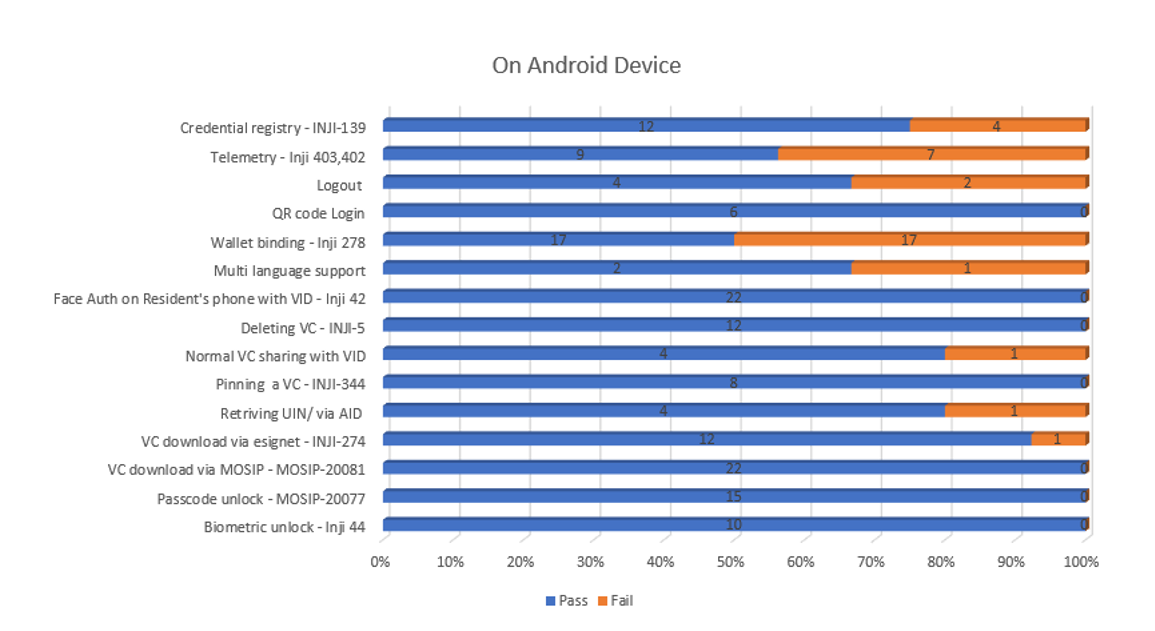

On Android Device
Total Test cases: 733
Passed: 625
Failed: 76
Skipped: 32

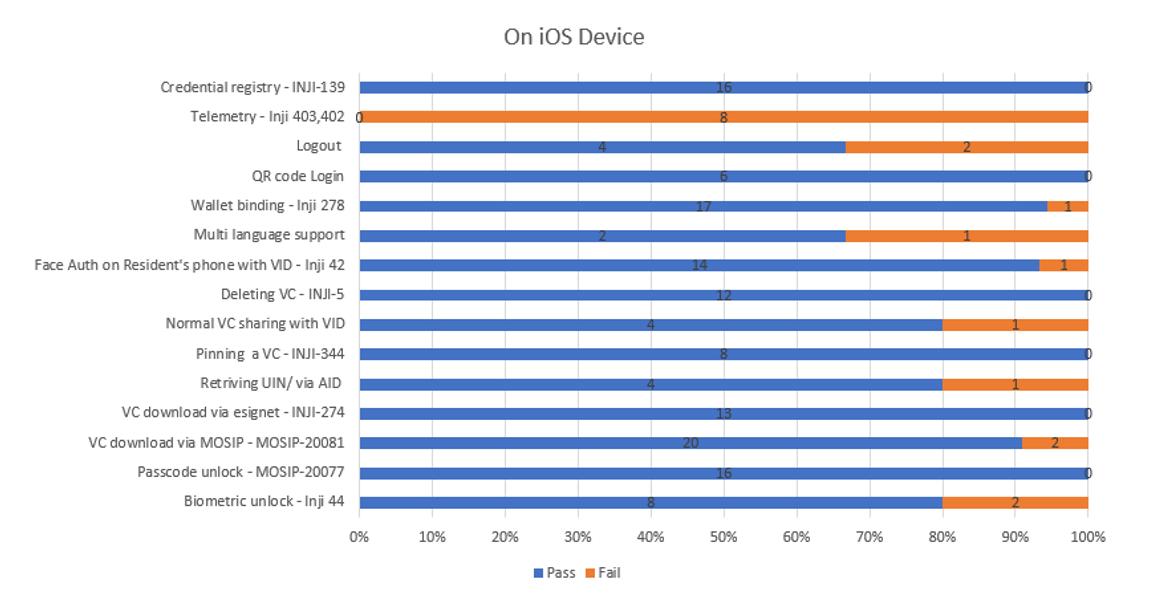

On iOS Device
Total Test cases: 661
Passed: 541
Failed: 100
Skipped: 20
External API verification results by modules
Below section provides details on API test metrics by executing MOSIP functional automation Framework. All external API test executions were performed at module level isolation. Each endpoint is tested with the test data and expectations of each test data are mapped to assert the test case.
Test Rate: 100% with Pass Rate: 98.34%
Here is the detailed breakdown of metrics:
Inji Wallet
eSignet
Note:
Functional and test rig code base branch which is used for the above metrics is:
Commit Sha: 6641489c9ea2129daaf6989c7e6d73bae528a4c0
UI Verification results by modules
Below section provides details on UI test metrics by executing MOSIP UI Automation Framework. Test executions were performed at module level isolation. Each end point is tested with the test data and expectations of each test data are mapped to assert the test case.
Here is the detailed breakdown of metrics:
Android
iOS

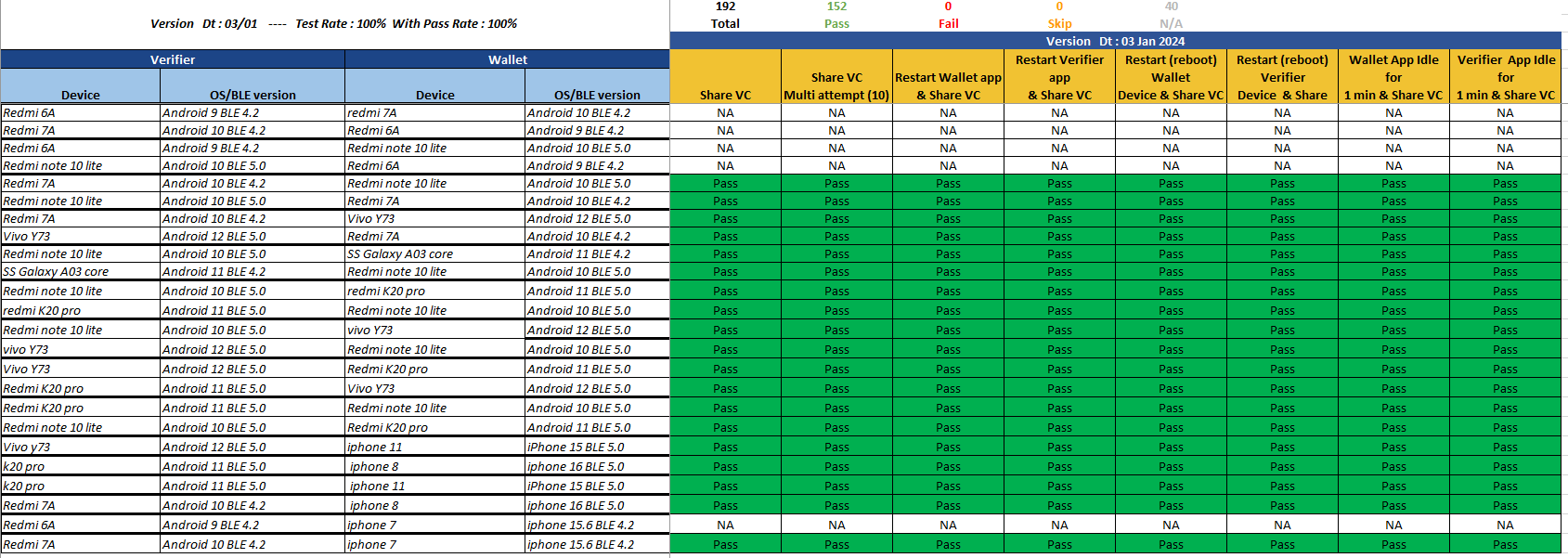

Testing with various device combinations
Below are the test metrics by performing VC Sharing functionality on various device combinations.
Test Rate: 100% with Pass Rate: 100%
Detailed Test Metrics
Below are the detailed test metrics by performing manual/ automation testing. The project metrics are derived from Defect density, Test coverage, Test execution coverage, test tracking and efficiency.
The various metrics that assist in test tracking and efficiency are as follows:
Passed Test Cases Coverage: It measures the percentage of passed test cases. (Number of passed tests / Total number of tests executed) x 100
Failed Test Case Coverage: It measures the percentage of all the failed test cases. (Number of failed tests / Total number of test cases executed) x 100
Link for the detailed test report.
