Test Report

Testing Scope

The scope of testing is to verify fitment to the specification from the perspective of

• Functionality

• Deployability

• Configurability

• Customizability

Verification is performed not only from the end user perspective but also from the System Integrator (SI) point of view. Hence Configurability and Extensibility of the software is also assessed. This ensures the readiness of software for use in multiple countries.

The Inji testing scope revolves around the following flows:

• Biometric unlock

• Passcodes unlock

• VC download via MOSIP

• VC download via e-signet

• VC downloads via Sunbird

• Pinning a VC

• Normal VC sharing with VID

• Deleting VC

• Face Auth on Resident's phone with VID

• Multi language support

• Credential registry

• Backup and restore

• Wallet binding

• Deep link navigation

• OpenID4VP

• QR code Login

• Key Management

• Logout

Test Approach

Persona based approach has been adopted to perform the IV&V, by simulating test scenarios that resemble real-time implementation.

A Persona is a fictional character/user profile created to represent a user type that might use a product/or a service in a similar way. Persona based testing is a software testing technique that puts software testers in the customer's shoes, assesses their needs from the software and thereby determines use cases/scenarios that the customers will execute. The persona needs may be addressed through any of the following.

• Functionality

• Deployability

• Configurability

• Customizability

The verification methods may differ based on how the need was addressed.

Verified configuration

Verification is performed on various configurations as mentioned below

• Default configuration - with 1 Lang\

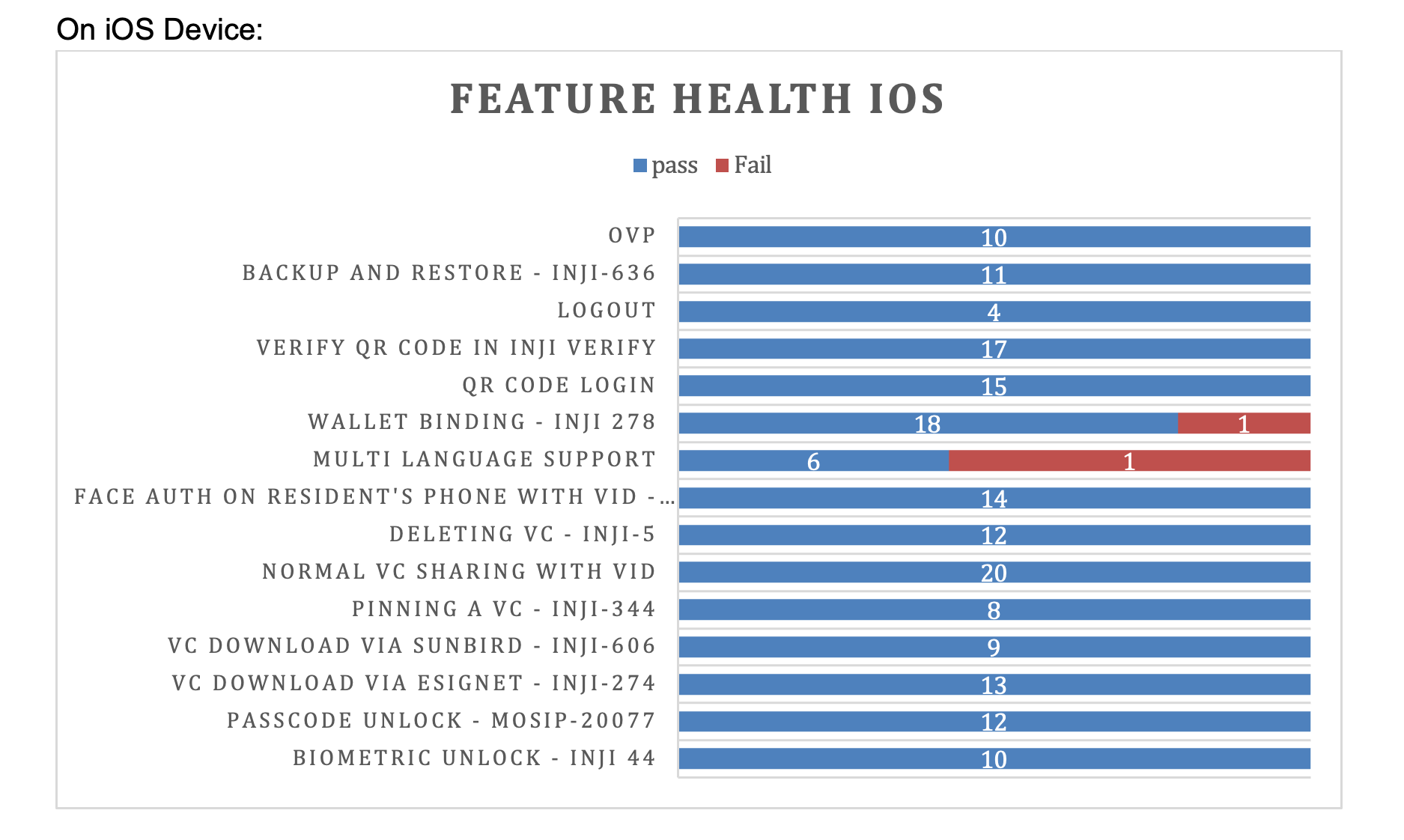

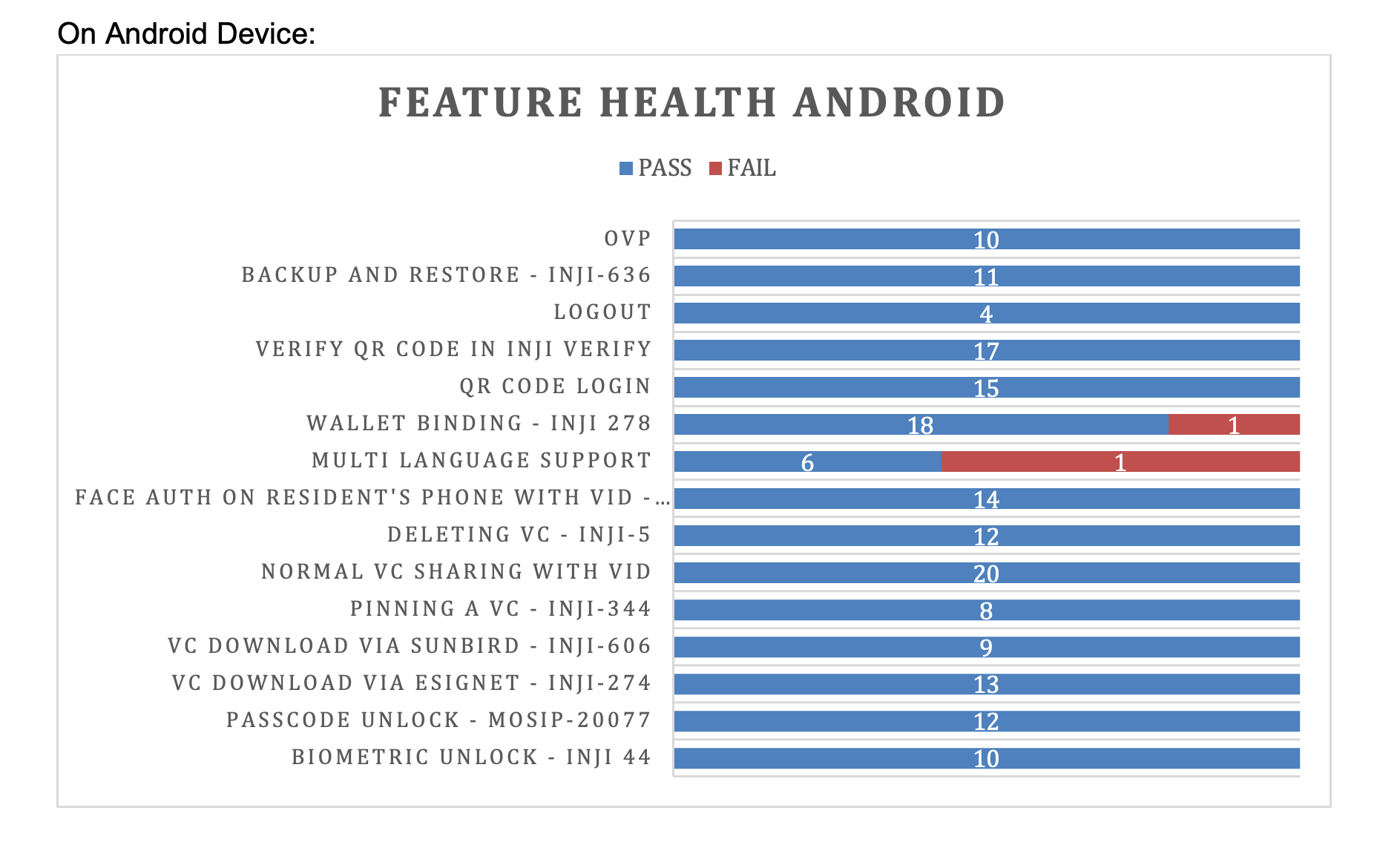

Feature Health

Test execution statistics

Functional test results by modules

Below are the test metrics by performing functional testing using mock MDS and mock ABIS. The process followed was black box testing which based its test cases on the specifications of the software component under test. The functional test was performed in combination with individual module testing as well as integration testing. Test data were prepared in line with the user stories. Expected results were monitored by examining the user interface. The coverage includes GUI testing, System testing, End-To-End flows across multiple languages and configurations. The testing cycle included simulation of multiple identity schema and respective UI schema configurations.

Total	Passed	Failed	Skipped (N/A)
3718	3359	359	0
Test Rate: 100% With Pass Rate: 90%

** Here is the detailed breakdown of metrics for each module**:

	Test cases
On Android Device	Total	1946
Passed	1768
Failed	178
Skipped (N/A)	0
On iOS Device	Total	1772
Passed	1591
Failed	181
Skipped (N/A)	0

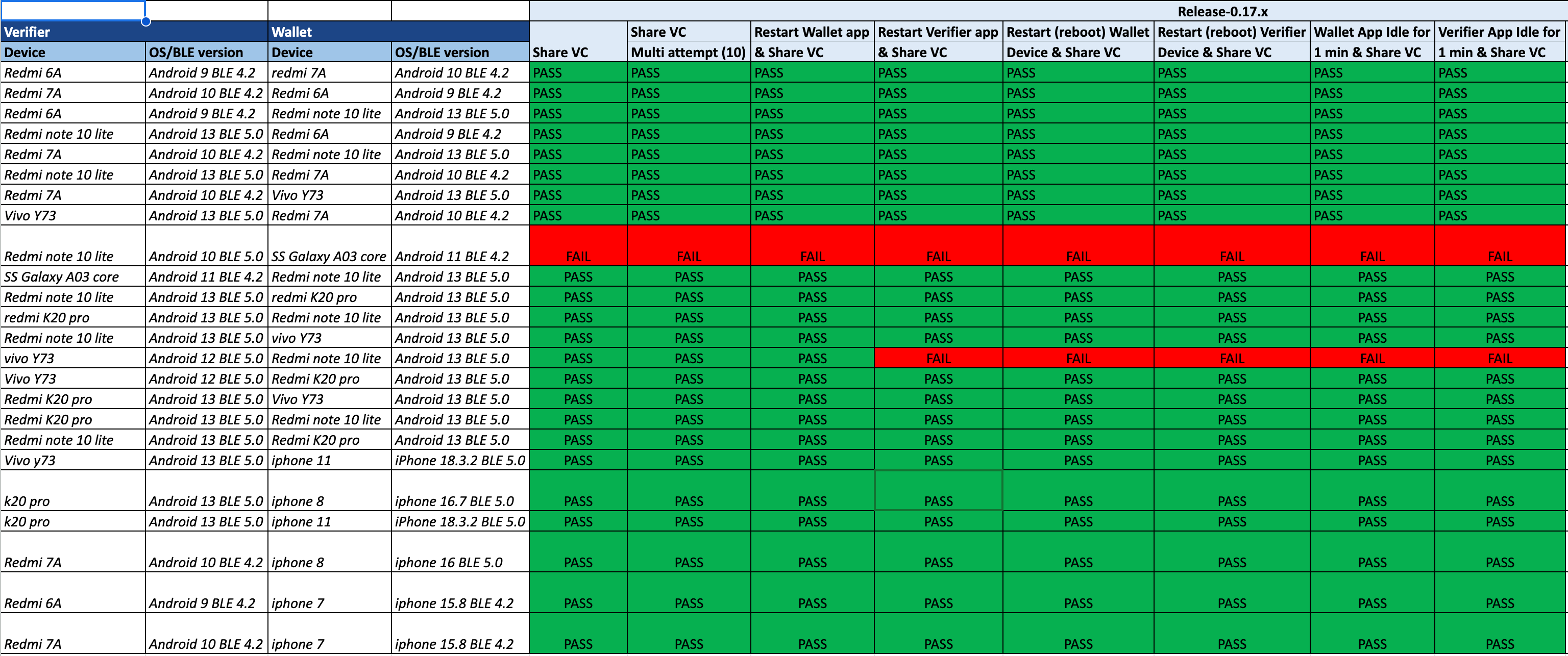

Testing with various device combinations

Below are the test metrics by performing VC Sharing functionality on various device combinations

Total	Passed	Failed	Skipped
192	179	13	0
Test Rate: 100% With Pass Rate: 93.22%

Device and Component Details:

Tested Components

QA Environment (qa-inji1)

• mosipqa/inji-verify-service:0.13.x

• mosipqa/inji-verify-ui:0.13.x

• mosipqa/inji-certify-with-plugins:develop

• mosipid/apitest-mimoto:0.17.1

• mosipqa/mimoto:develop

• mosipqa/inji-web:0.13.x

Released Environment

• mosipid/apitest-mimoto:0.17.1

• mosipid/apitest-mimoto:0.17.1

• mosipid/inji-verify-service:0.12.3

• mosipid/inji-verify-ui:0.12.3

• mosipid/inji-certify-with-plugins:0.11.0

• mosipid/inji-web:0.12.0

• mosipid/esignet-with-plugins:1.5.1

• mosipid/authentication-service:1.2.1.0

• mosipid/authentication-internal-service:1.2.1.0

• mosipid/authentication-otp-service:1.2.1.0

• mosipid/kernel-notification-service:1.2.0.1

• mosipid/registration-processor-stage-group-1:1.2.1.1

Devices Used for Testing

Device	OS Version	BLE Version
Vivo Y73	Android 13	5.0
Samsung Galaxy A03 Core	Android 11	4.2
iPhone 11	iOS 18.3.2	5.0
iPhone 8	iOS 16.7	5.0
iPhone 7	iOS 15.8	4.2
Redmi 7A	Android 10	4.2
Redmi Note 10 Lite	Android 13	5.0
Redmi K20 Pro	Android 13	5.0
Redmi 6A	Android 9	4.2

Italicized device names indicate devices used for specific compatibility or regression testing.

Detailed Test Metrics

Below are the detailed test metrics by performing manual testing. The project metrics are derived from Defect density, Test coverage, Test execution coverage, test tracking and efficiency.

The various metrics that assist in test tracking and efficiency are as follows:

• Passed Test Cases Coverage: It measures the percentage of passed test cases. (Number of tests passed / Total number of tests executed) x 100

• Failed Test Case Coverage: It measures the percentage of all failed test cases. (Number of failed tests / Total number of test cases executed) x 100

Execution Test Summary

• Well known and wallet metadata story verification was performed against the qa-inji1 env.

Other story verification performed against released env.
